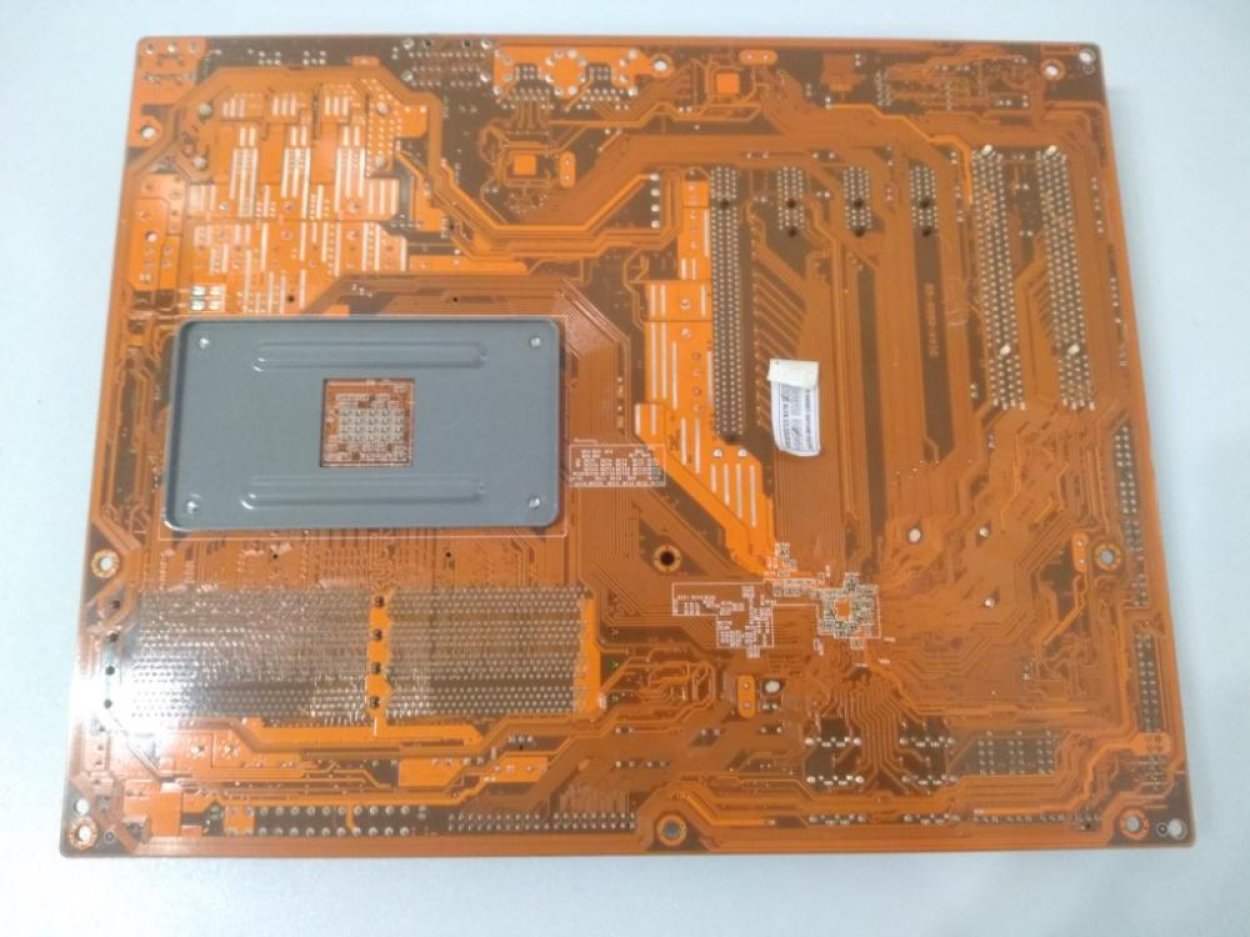

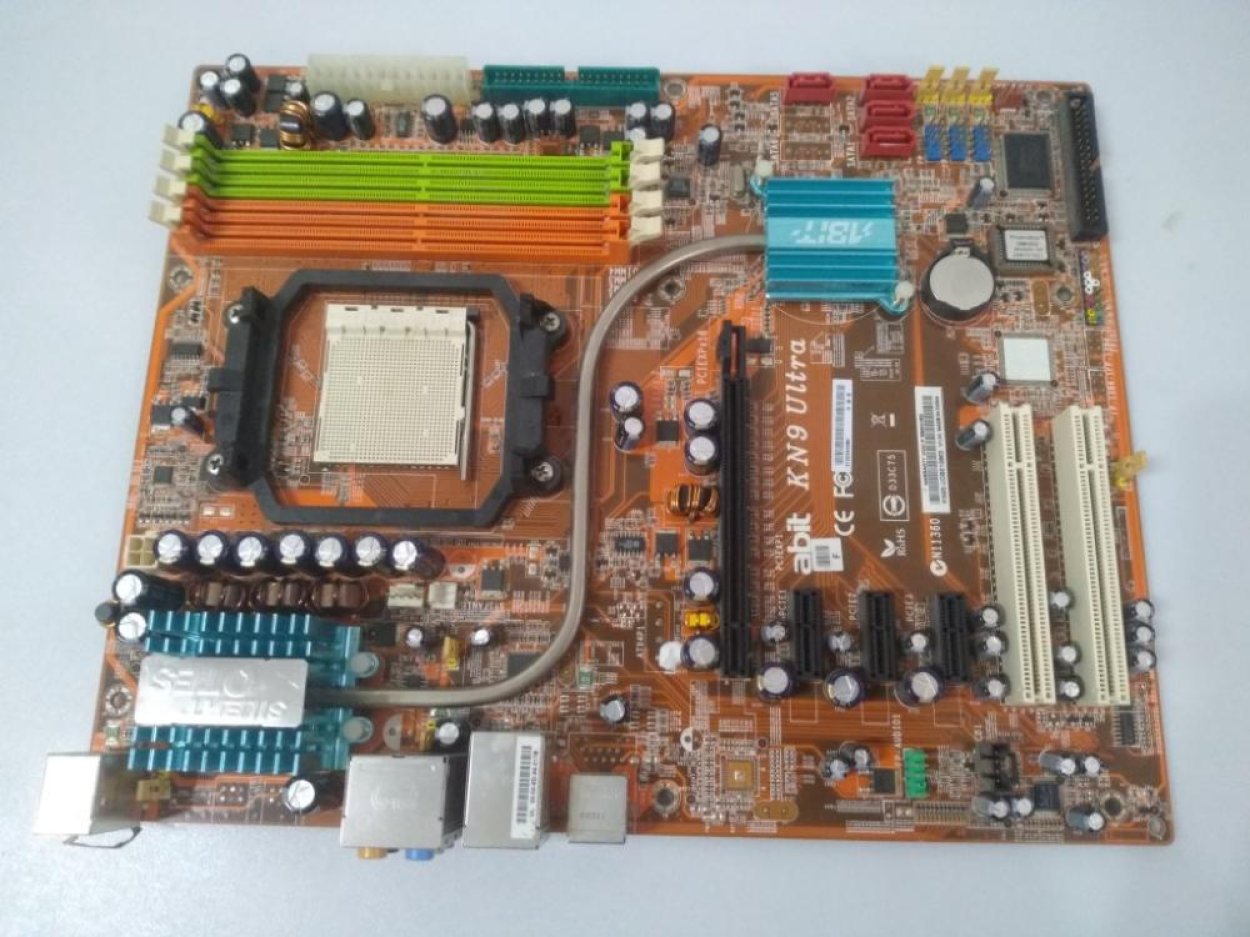

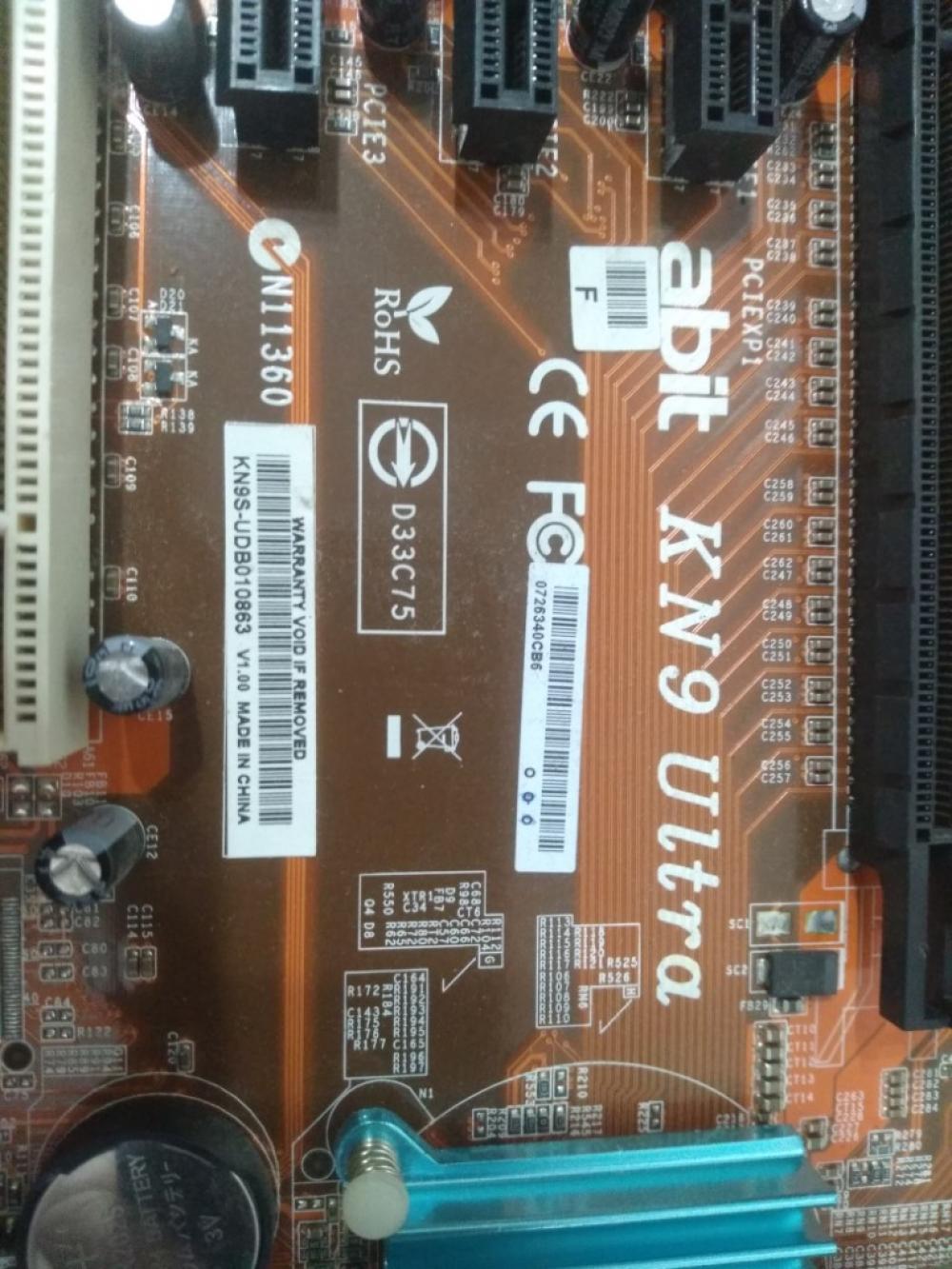

K9NS-UDB010863 V1.00 ABİT K9N ULTRA MODEL MASAÜSTÜ ANAKART (DESKTOP BOARD)

2.EL SAĞLAM DURUMDA.TEST EDİLMİŞTİR.

TEKNİK ÖZELLİKLER:

CPU

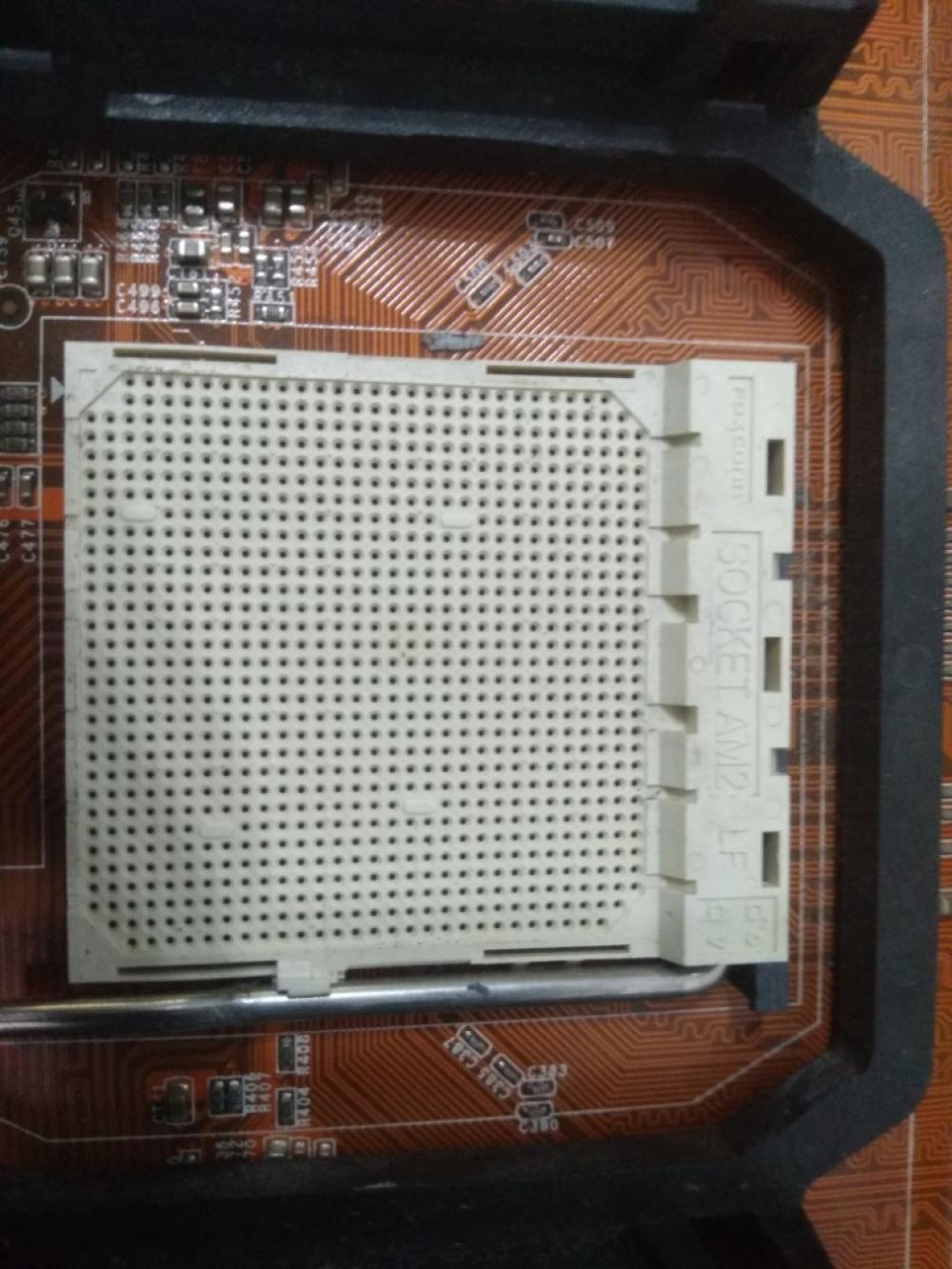

Supports Socket AM2 Processor with 2GHz system bus using Hyper Transport™ Technology
Supports AMD CPU Cool 'n' Quiet Technology
 Chipset

NVIDIA NF5 Ultra single chip
NVIDIA GigabitEthernet with NVIDIA Firewall
 Memory

Four 240-pin DIMM sockets
Supports Dual channel DDR2 800 ECC/non-ECC, Un-buffered memory
Supports maximum memory capacity up to 8GB
 Graphics

Use PCI-E Expansion slot
 SATA 3Gb/s RAID

Supports 6 ports NV SATA 3Gb/s RAID 0/1/0+1/5 JBOD
 IEEE 1394

Supports IEEE1394a at 400 Mb/s transfer rate
 Audio

On board 7.1 CH HD Audio CODEC (ALC883)
Supports auto jack sensing and optical S/PDIF Out
 Dual GbE LAN

Dual NVIDIA® Gigabit Ethernet
 Internal I/O Connectors

1 x PCI Express x16, 2 x PCI Express x1, 3 x PCI slots
1 x Floppy port supports up to 2.88MB
4 x SATA connectors, 1 x Ultra DMA 133/100/66/33 Connector
3 x USB 2.0 headers, 1 x FP-Audio header, 1 x CD-IN
2 x 1394 headers

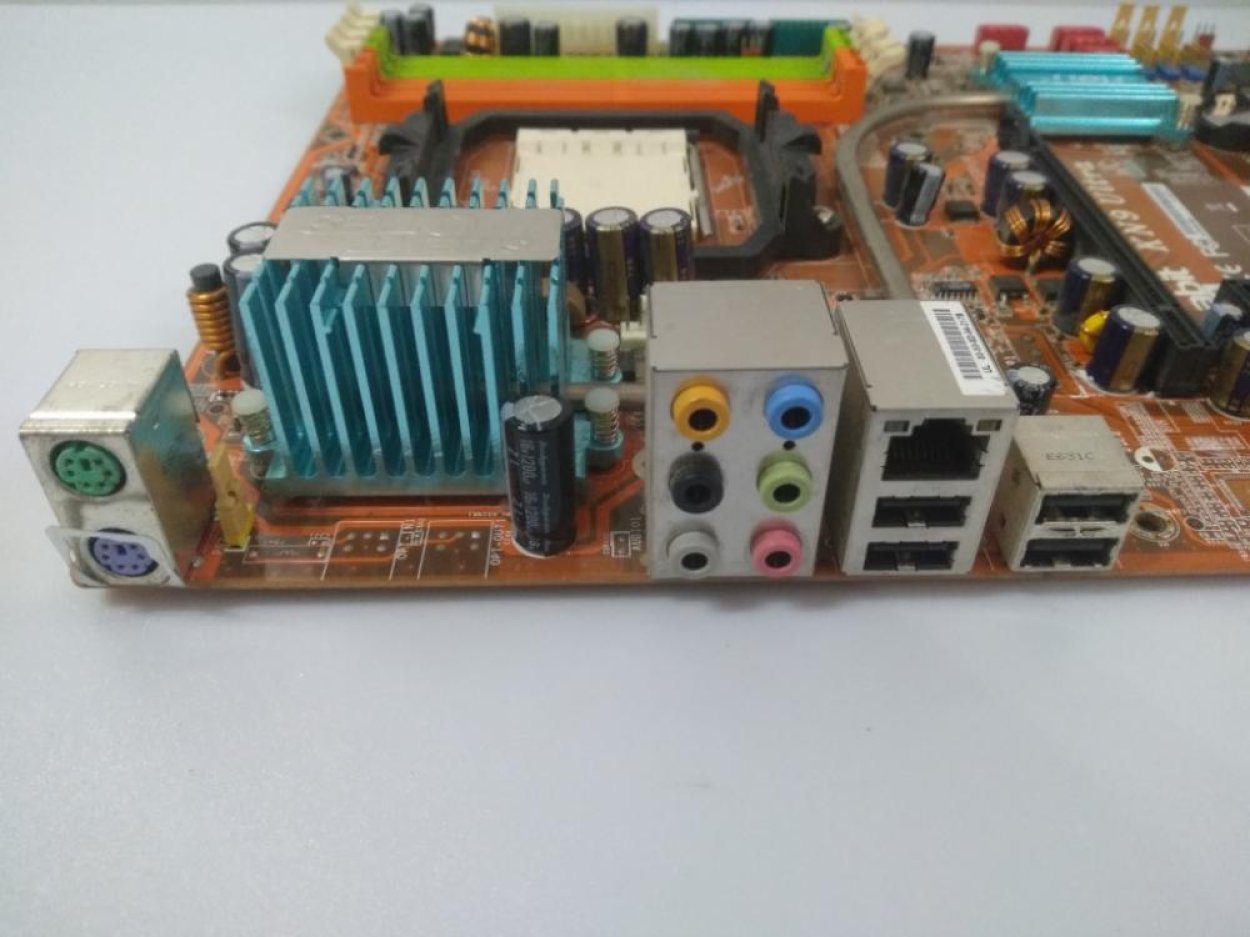

 Back Panel I/O

1 x PS/2 Keyboard, 1 x PS/2 Mouse
1 x S/PDIF Out
1 x Audio connector (Line-out, Line-in, MIC-in, Center/Subwoofer, Rear Surround, Side Surround)
4 x USB connectors, 1 x RJ-45 LAN Connector
 RoHS

RoHS Compliancy
 Miscellaneous

ATX form factor 305 x 245m
PCB Color: Orange
 abit Engineered

abit CPU ThermalGuard™ Technology
abit SoftMenu™ Technology
abit Silent OTES
