2.EL SAĞLAM DURUMDA.TEST EDİLMİŞTİR.
ÖZELLİKLER:
CPU
Supports Intel 45nm Core 2 Quad(Yorkfield) and Core2 Duo(Wolfdale) series processors. (please refer to the CPU support list for more detail)
LGA775 socket for latest Intel® *Core 2 Quad/Core 2 Duo / Pentium Dual-core (E21xx series)/Celeron 4xx processors
FSB 1333/1066/800 MHz
* G31T-M is capable to support Core 2 Quad Q6700 G0 and Q6600 G0
CHIPSET
Intel® G31 & ICH7
North Bridge: Intel® G31
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 3100 (GMA3100)
Max Dynamic Video Memory : 287MB (Vista) / 384MB (XP)
MEMORY
Dual-channel DDR2 memory architecture
2 x 240-pin DDR2 DIMM socket support up to 4 GB
Support DDR2 800/667 DDR SDRAM
EXPANSION SLOT
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
STORAGE
Supported by Intel®ICH7
2 x Ultra DMA100/66 devices
4 x Serial ATA 3.0Gb/s devices
AUDIO
Realtek ALC662 6-channel HD audio CODEC
LAN
Realtek RTL8101E 10/100 LAN

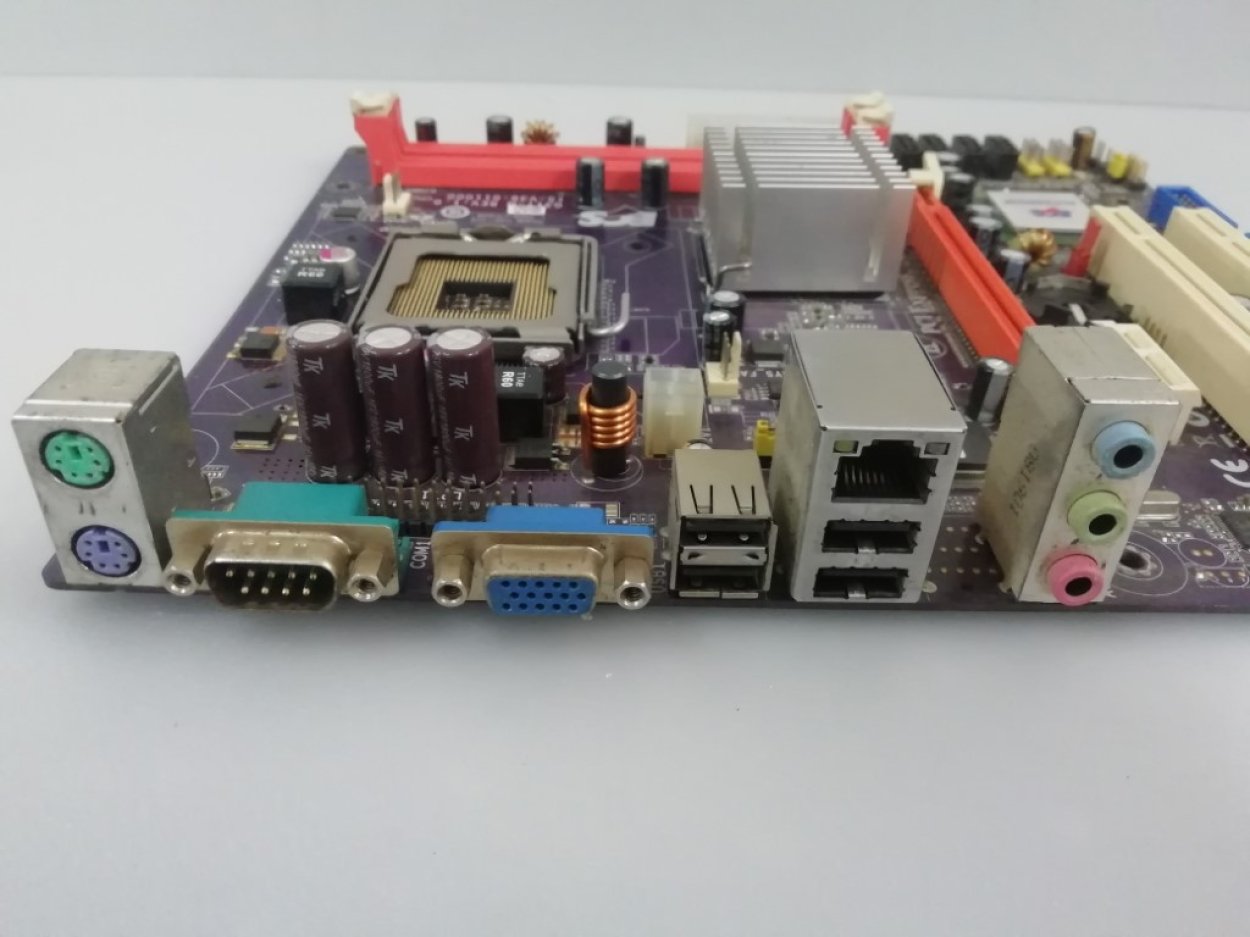

REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x VGA port
1 x Serial port (COM1)
1 x RJ45 LAN connector
1 x Audio port
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply connector
1 x 4-pin ATX 12V connector
1 x FDD connector supports one 360K~2.88MB FDD
4 x Serial ATA connectors
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x LPT1 header
1x CD in header
1 x Speaker header
1 x SPDIF out header
CPUFAN/SYSFAN connectors
SYSTEM BIOS
AMI BIOS with 8Mb SPI ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
FORM FACTOR
Micro-ATX Size, 244mm*200mm
