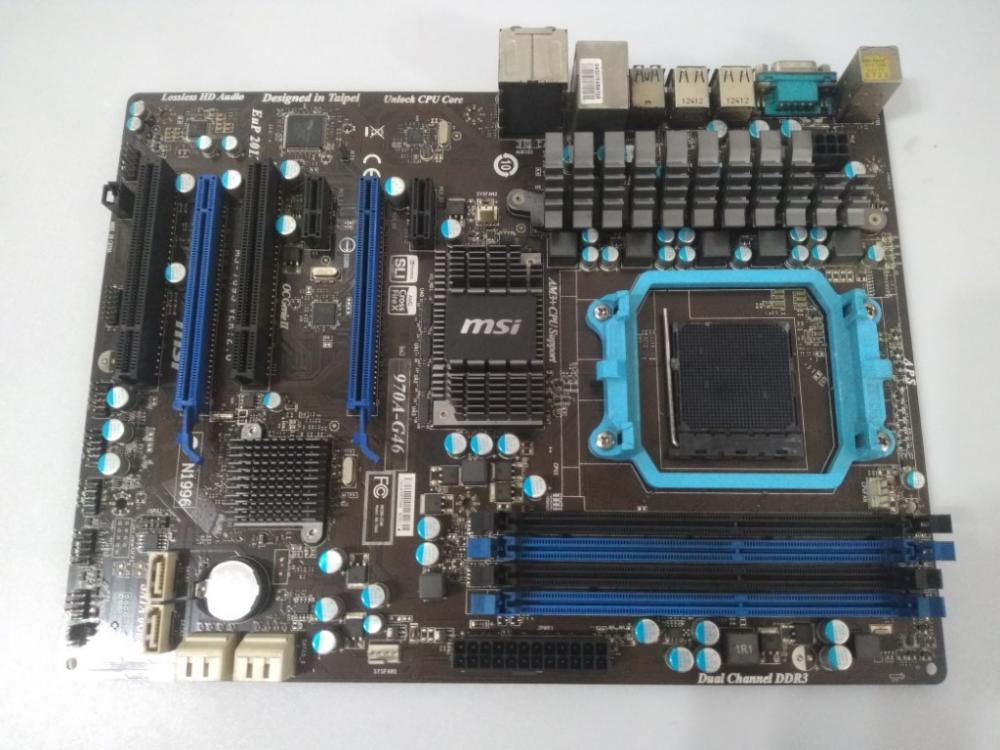

MSI 970A-G46 (MS-7693) MODEL MASAÜSTÜ ANAKART

2.EL SAĞLAM DURUMDA.TEST EDİLMİŞTİR.

TEKNİK ÖZELLİKLER:
AMD 970 chipset based
• All Solid CAP
• OC Genie II: Easy Overclocking Technology
• Support USB 3.0 and SATA 6Gb/s
• Lossless 24bit/192kHz HD Audio

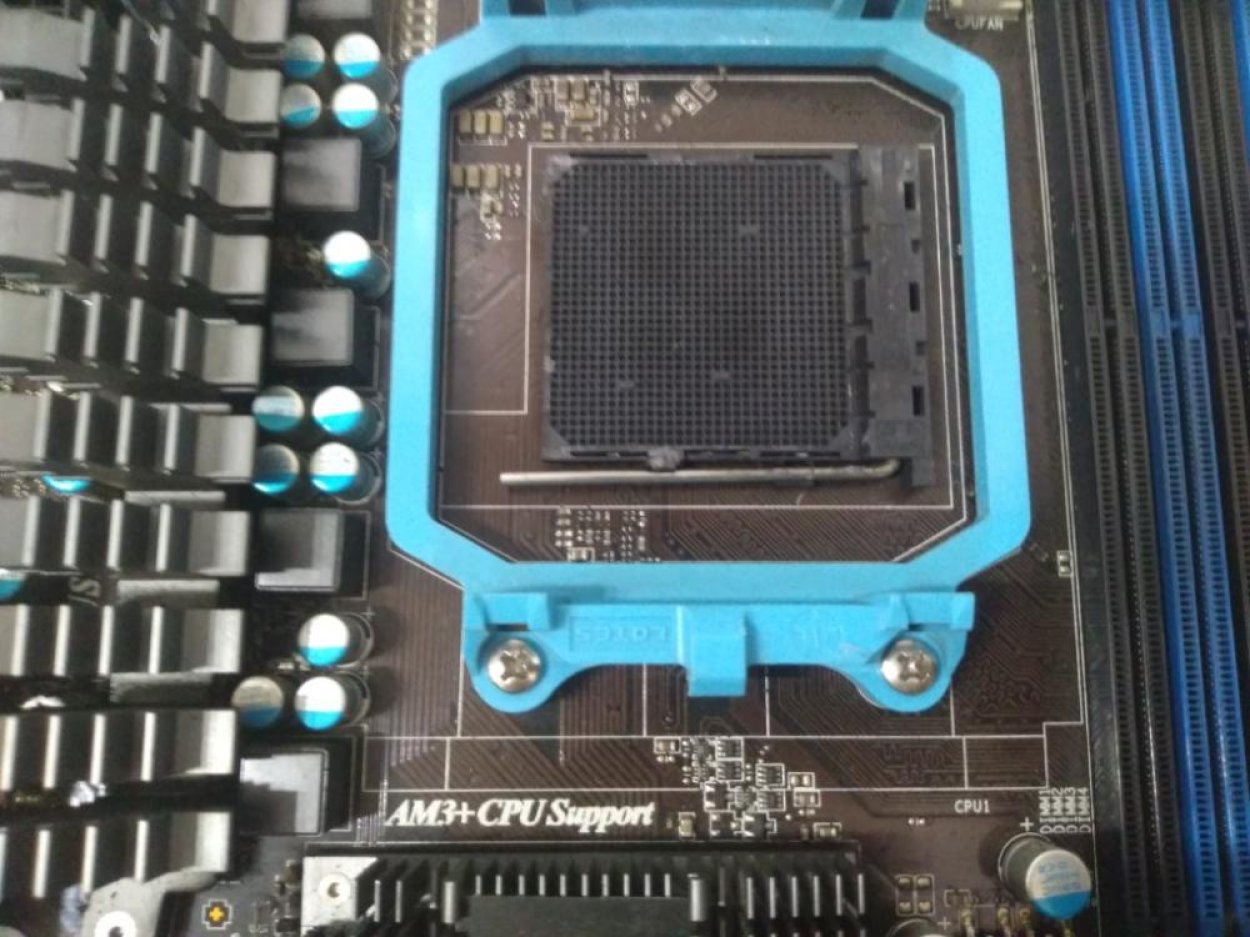

CPU
• 64bit AMD® FX, Phenom II X6/X4/X3/X2 and Sempron CPU in AM3 / AM3+ package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus
• HyperTransport 3.0 supporting speed up to 4.8GT/s

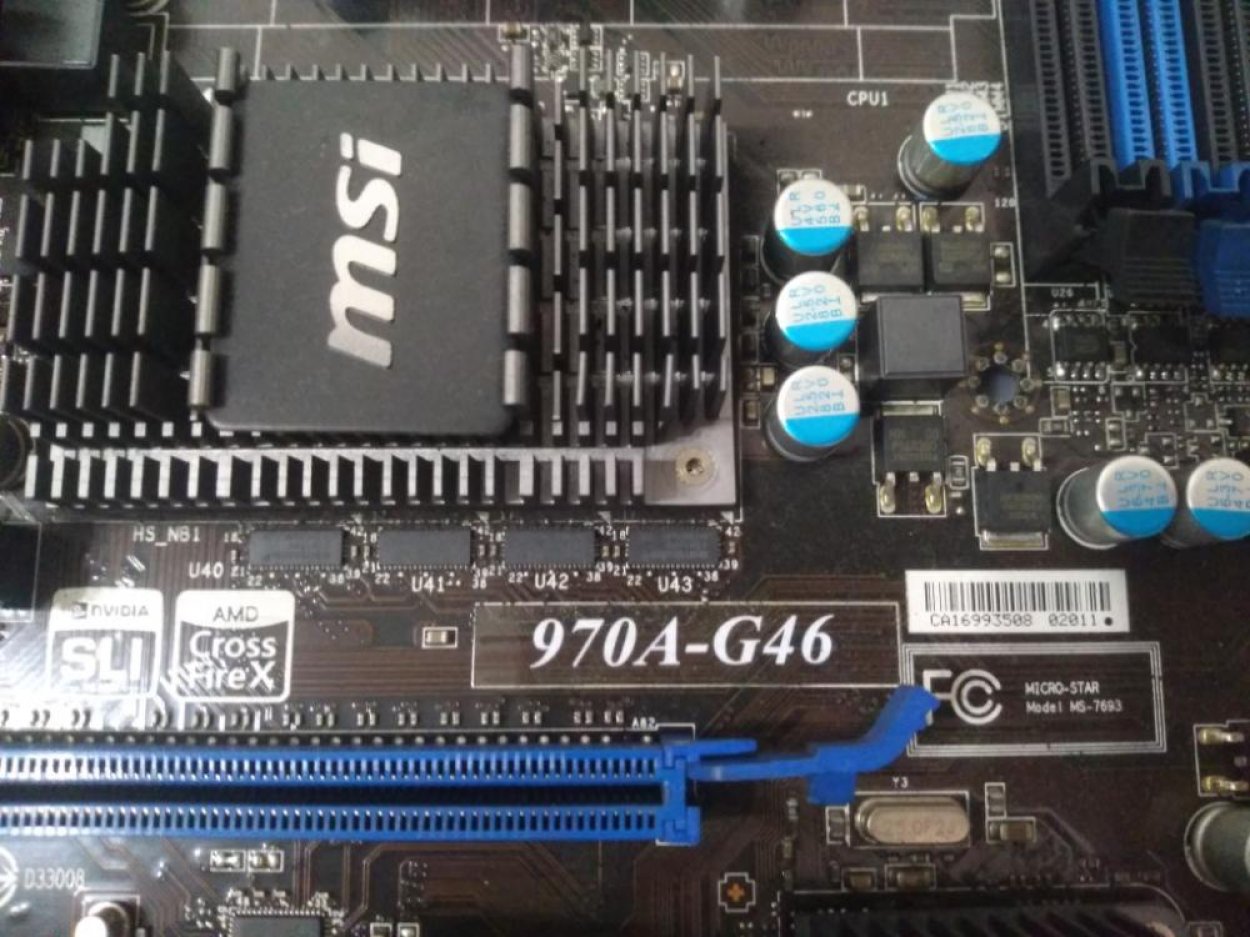

Chipset
• AMD® 970 and SB950 Chipset

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600/1866/2133* (OC) DRAM, 32GB Max

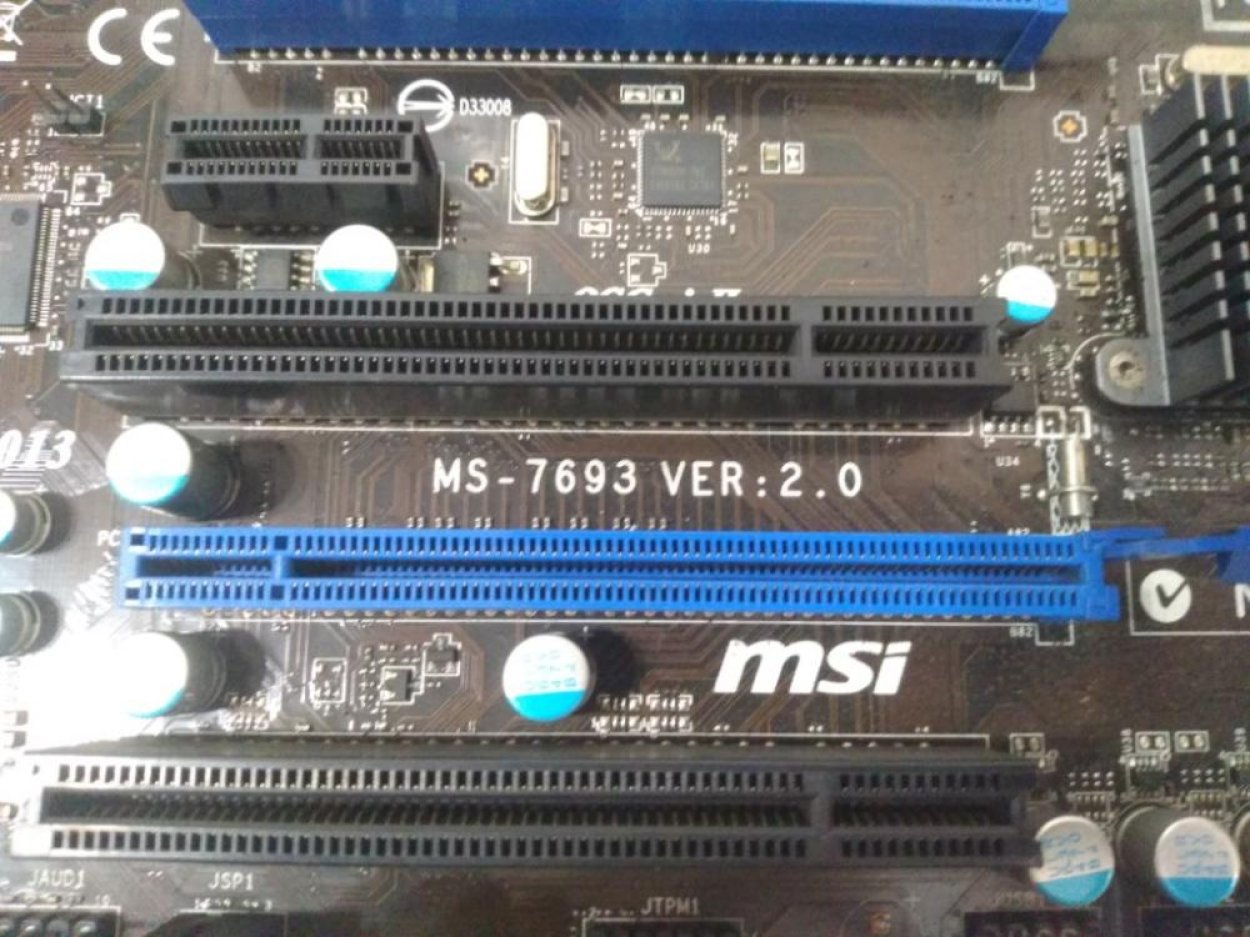

Slots
• 2 PCI Express 2.0 x16 slots
• 2 PCI Express 2.0 x1 slots
• 2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board SATA
• 6 SATA III (1~6) ports by AMD® SB950
- Supports storage and data transfers at up to 6Gb/s

RAID Function
- SATA III 1~6 support RAID 0, 1, 5, 10 mode by AMD® SB950
MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk

USB 3.0
• 2 USB 3.0 ports by Asmedia® ASM1042

Audio
• Chipset integrated by Realtek® ALC892
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN
• Realtek PCI-E GbLAN controller 8111E
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors
- 1 x ATX 24-pin power connector
- 1 x ATX 8-pin 12V CPU power connector
- CPU x 1 / System x 2 FAN connectors
- 1 x Front panel audio connector
- 1 x Front panel connector
- 1 x Chassis intrusion switch connector
- 3 x USB 2.0 connectors
- 6 x Serial ATA III connectors
- 1 x Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector

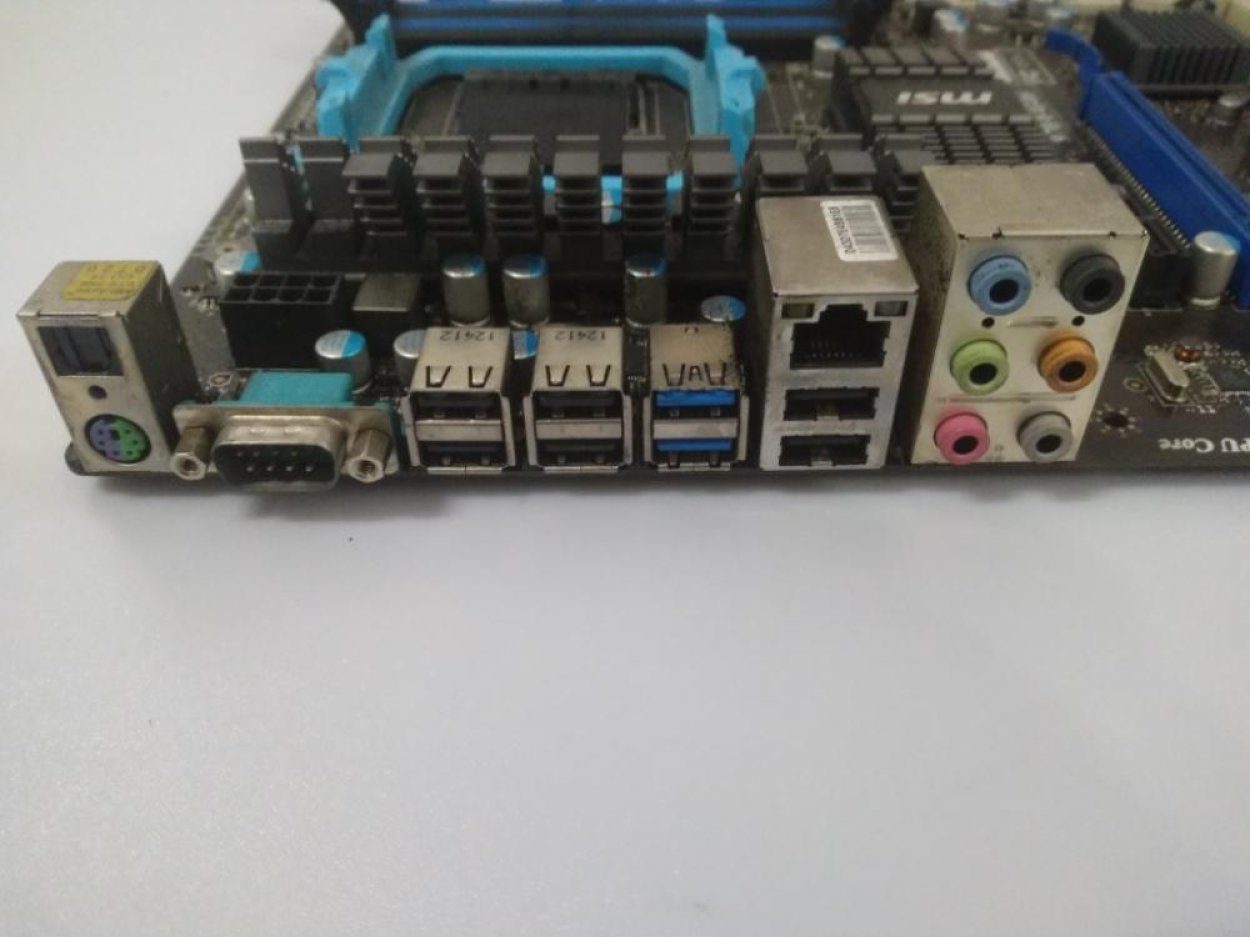

Back Panel I/O Ports
- 1 x Optical SPDIF-out
- 1 x PS/2 Keyboard/Mouse port
- 1 x Serial port
- 6 x USB 2.0 ports
- 2 x USB 3.0 ports (blue)
- 1 x RJ45 LAN jack
- 1 x 6 in 1 audio jack

Dimension • 30.5cm(L) x 22.5cm(W) ATX Form Factor
