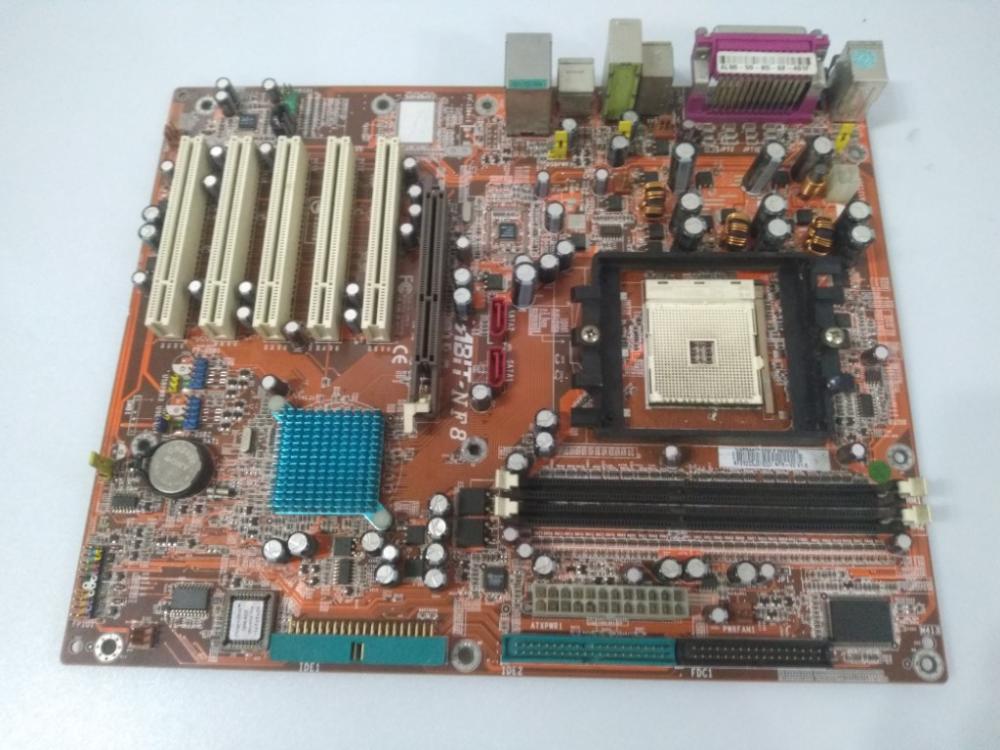

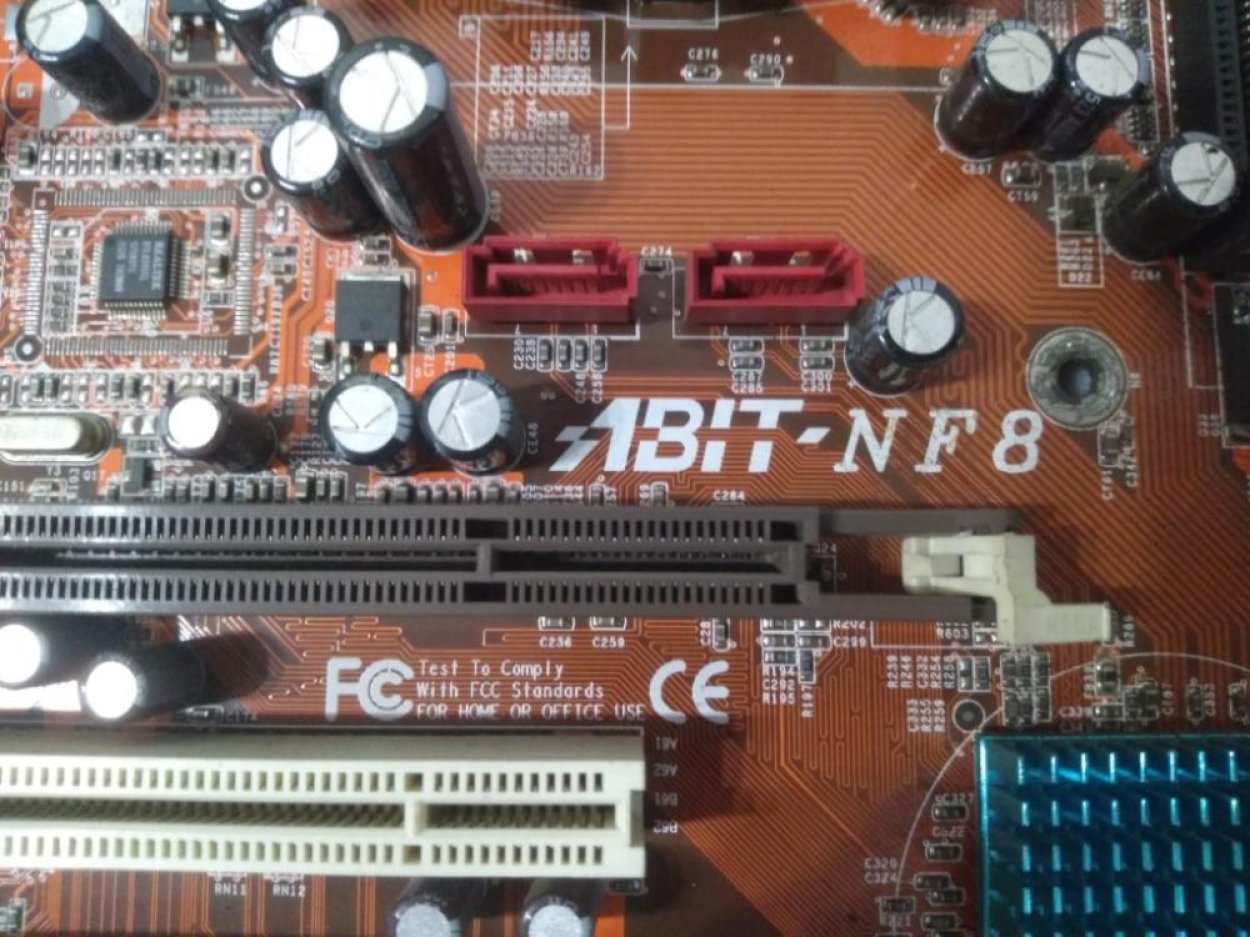

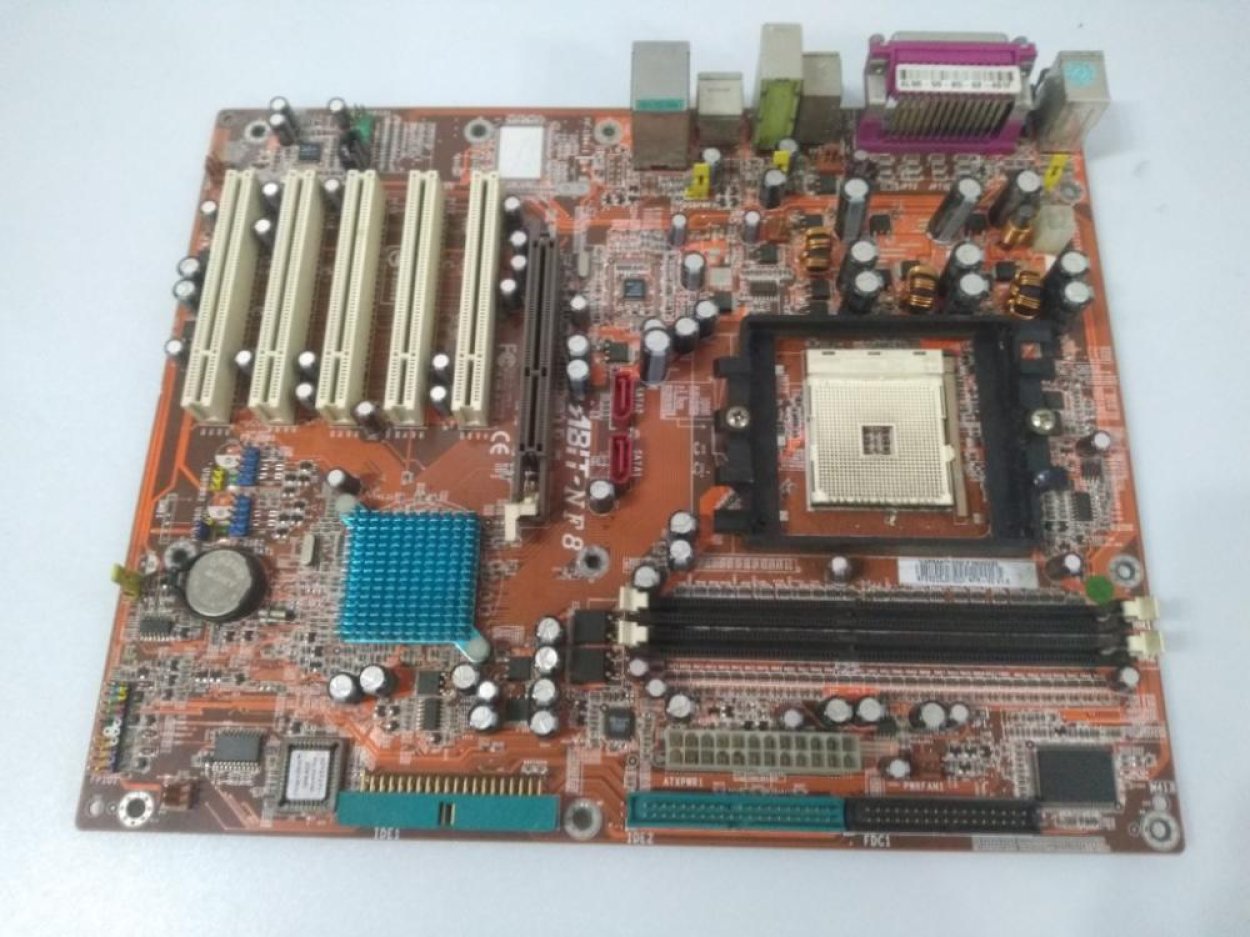

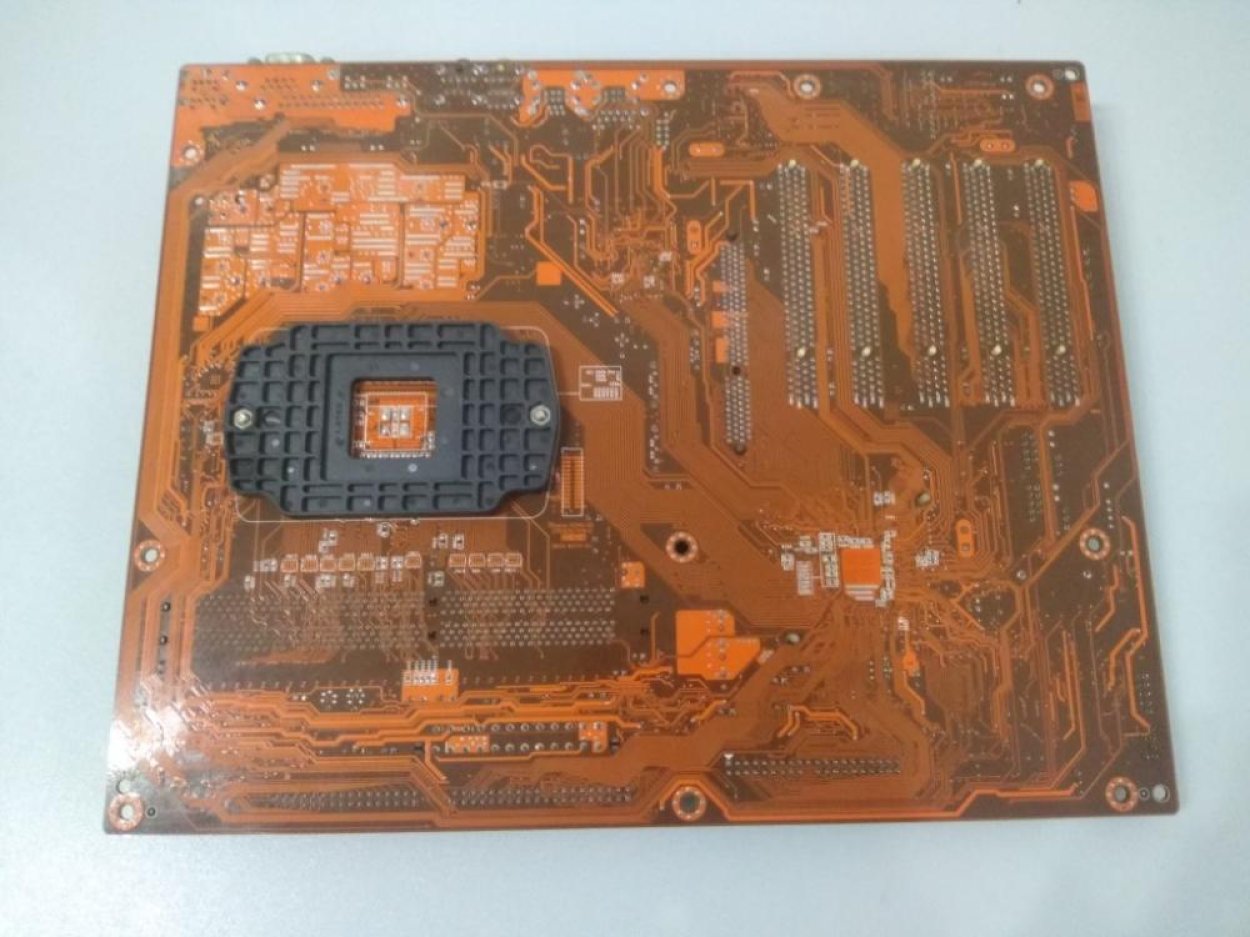

NF8-V2 ABİT NF8 MODEL MASAÜSTÜ ANAKART (DESKTOP BOARD)

2.EL SAĞLAM DURUMDA.TEST EDİLMİŞTİR.

TEKNİK ÖZELLİKLER:

 CPU

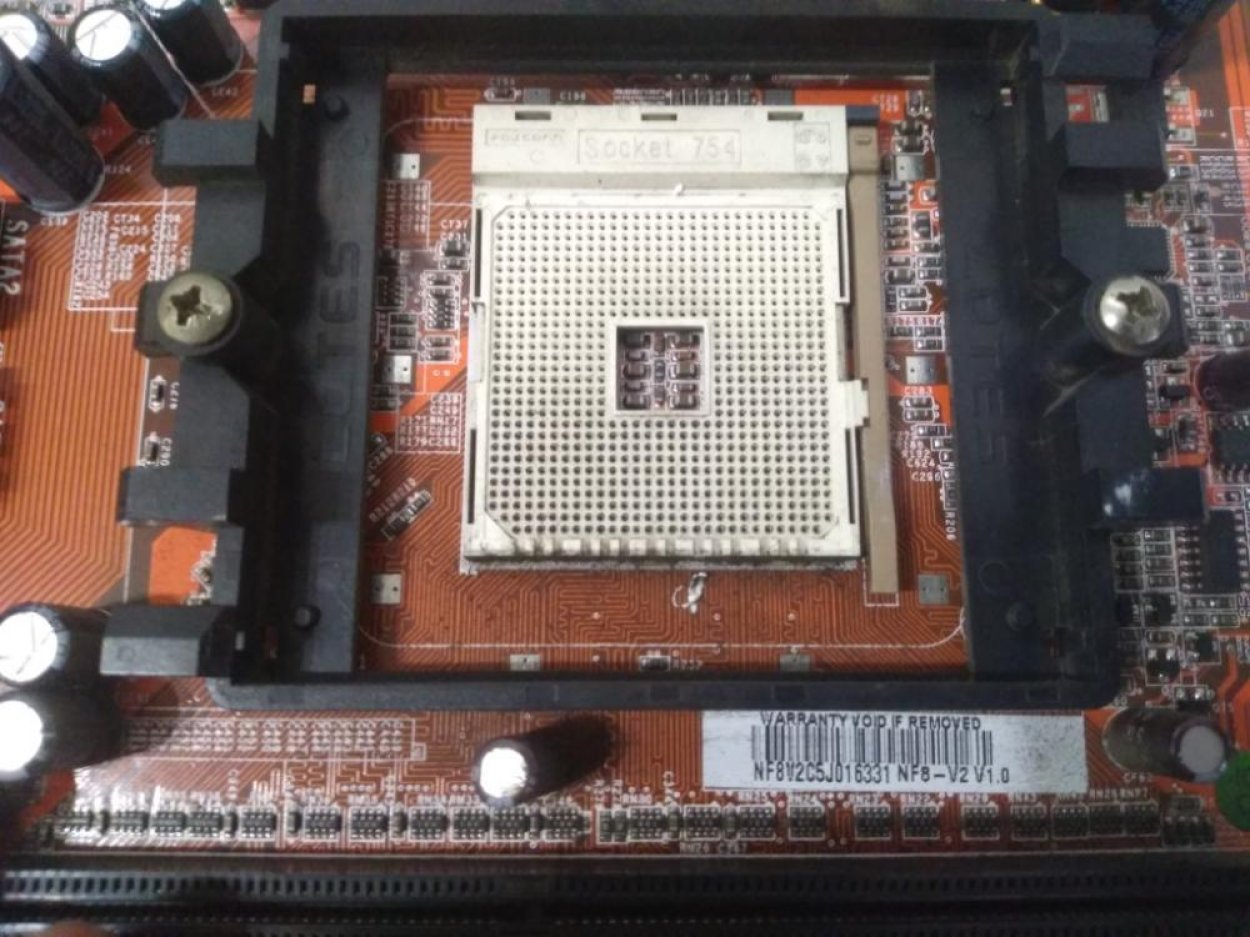

Supports AMD Socket 754 Athlon 64/Sempron Processors
With 1.6GHz system bus using Hyper Transport™ technology
Supports AMD CPU Cool 'n' Quiet Technology

 Chipset

NVIDIA NF3 250 single chip
Supports NV RAID

 Memory

Two 184-pin DIMM sockets
Supports DDR400 non-ECC un-buffered memory
Supports maximum memory capacity up to 2GB

 ABIT Engineered

ABIT SoftMenu™ Technology
ABIT CPU ThermalGuard™ Technology

 SATA NV RAID

Serial ATA 1.5Gbps data transfer rate
Supports SATA150 RAID 0/1

 LAN

On board 10/100Mb LAN

 Audio

On board 6-ch Audio CODEC
Supports auto jack sensing

 Internal I/O Connectors

1 AGP 8X/4X slot, 5 PCI slots
Floppy Port supports up to 2.88 MB
2 x Ultra DMA 133/100/66/33 IDE Connectors
2 x SATA 150 Connectors
2 x USB headers
1 x CD-IN

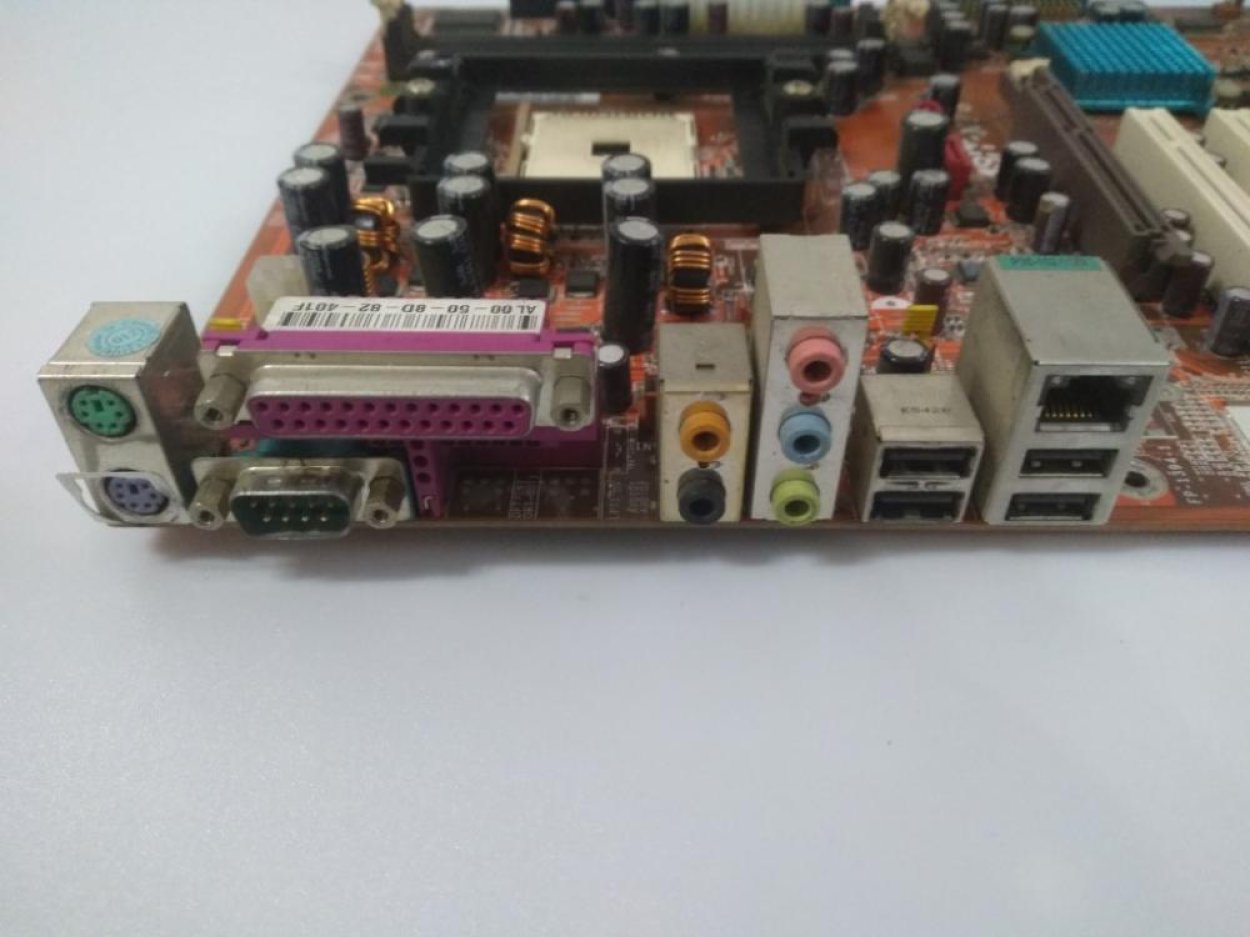

 Back Panel I/O

1 x PS/2 Keyboard, 1 x PS/2 mouse, 1 x Serial port, 1 x Parallel port
Audio connector (Surround, Center/Sub)
Audio connector (Front, Line-in, MIC-in)
4 x USB, 1 x RJ-45 LAN Connector

 Form Factor

ATX form factor 305 x 225mm

 Accessories

A5 standard User's Manual x 1
Jumper Setting Label x 1
CD Title x 1, SATA Utility Disk x 1
SATA cable x 2, ATA 100 IDE Cable, FDD cable
USB2.0 Bracket
I/O shield x 1
