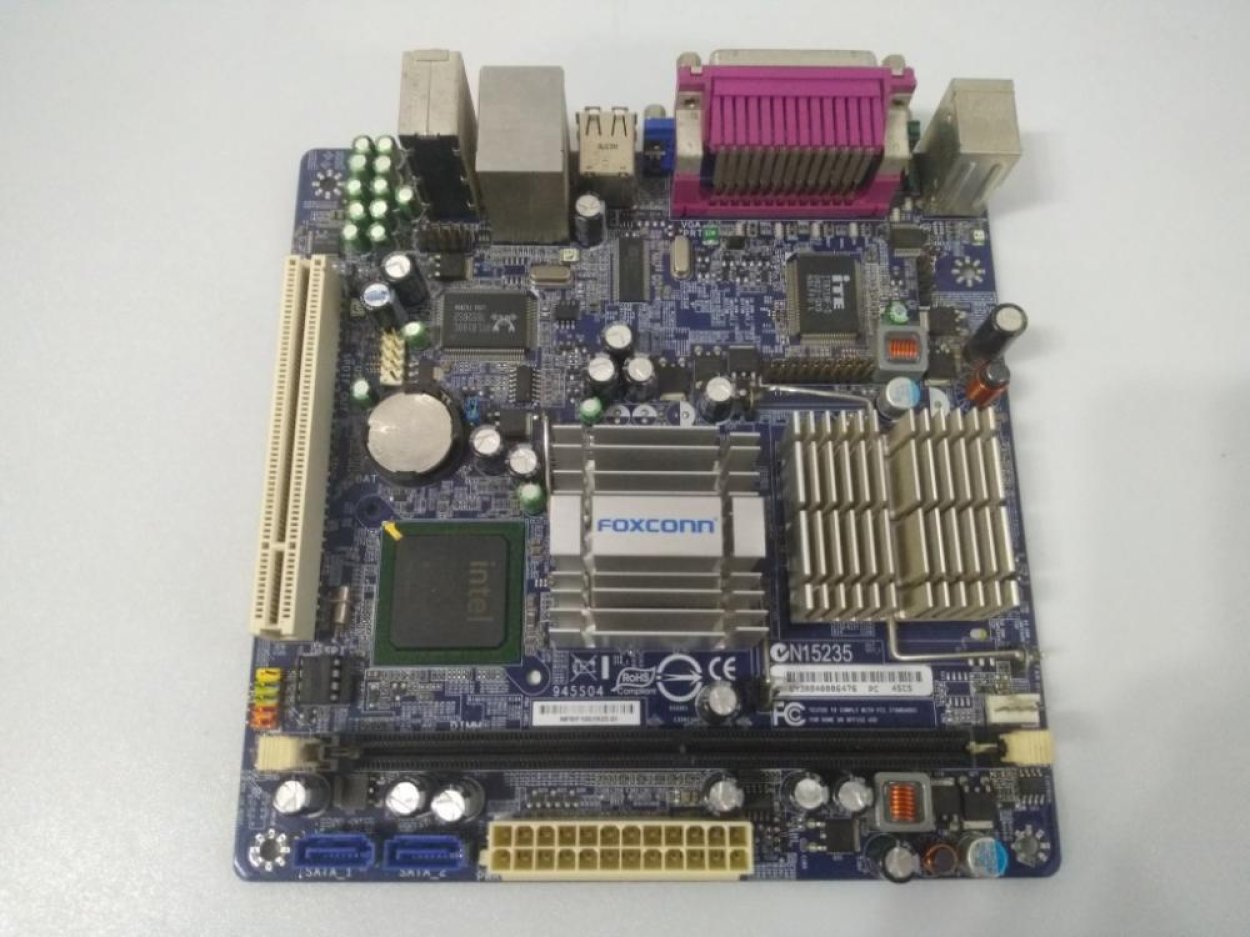

FOXCONN 945S04 MODEL MASAÜSTÜ ANAKART VE İŞLEMCİ

2.EL SAĞLAM DURUMDA.TEST EDİLMİŞTİR.

TEKNİK ÖZELLİKLER:
Processor: Intel® AtomTM single-core 230 processor mounted onboard
Chipset: Intel® 945GC + ICH7
Front Side Bus: 533 MHz (FSB)
Memory: DDR2 533 MHz x 1 DIMM, Max. 2GB
VGA on Die: Integrated
Expansion Slots: 1 x PCI
Serial ATA(SATA)/RAID: 2 x SATA II
Audio: 5.1 channel HDA by Realtek® ALC662
LAN: 10/100M LAN by Realtek® RTL8100C

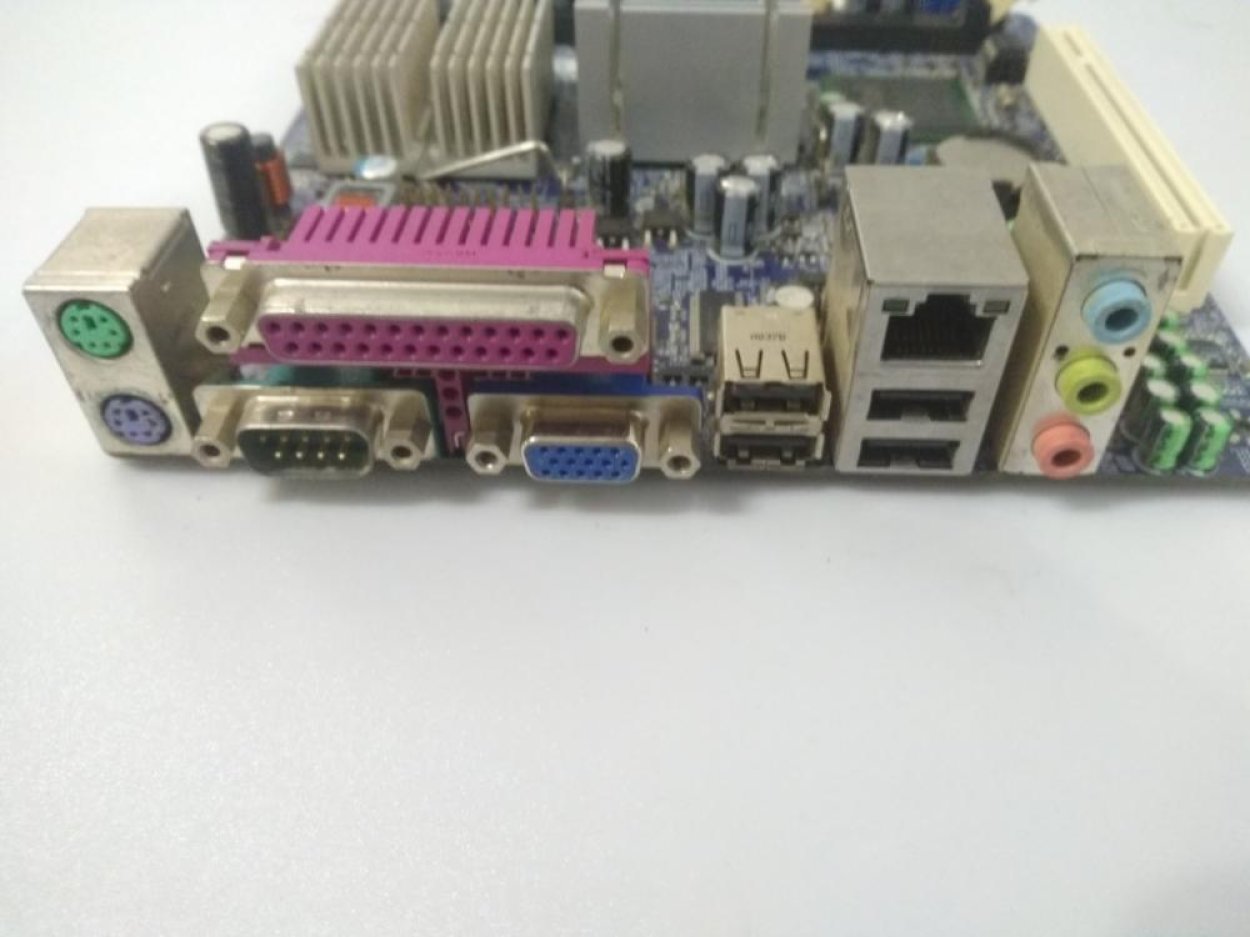

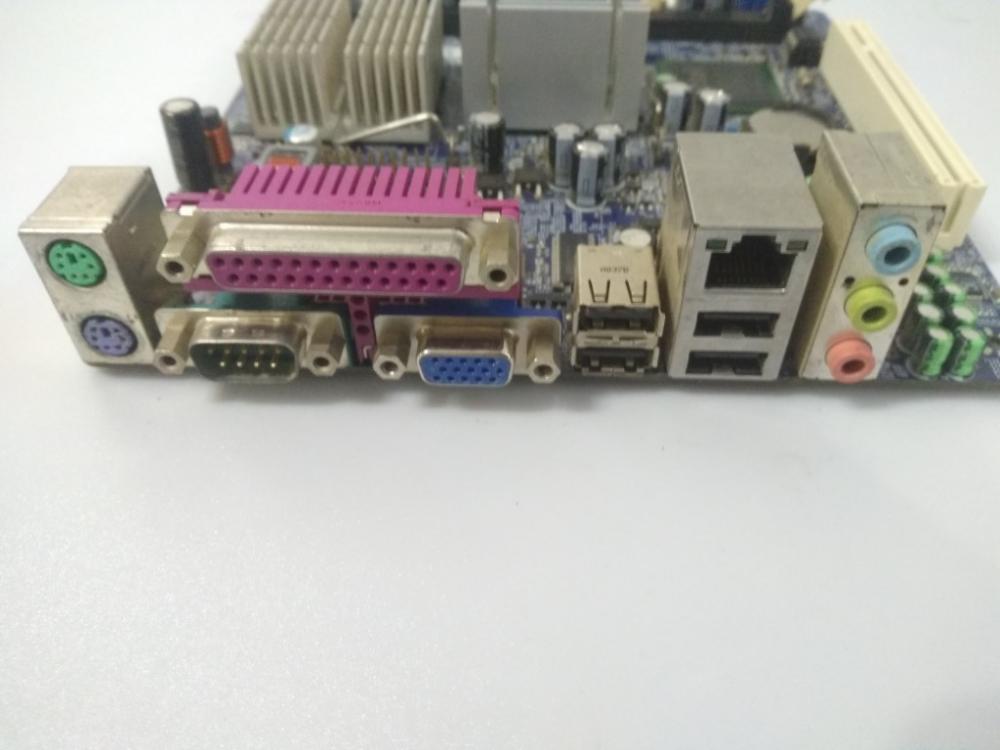

Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x Serial port
1 x Parallel port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
1 x VGA port
Internal I/O Connectors:
1 x ATX 24-pin power connector
1 x 4-pin System fan connector
1 x IrDA header
1 x TPM header
2 x Serial ATAII connectors
1 x Front panel connector
1 x Front Audio header
1 x USB 2.0 header (one header reserved) supports additional 2 ports
BIOS Features: 4MB flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: Mini-ITX (170mm x 170mm)
